Heat-treated High Hardness Bimetal Wear-resistant Pipe hmanga tihdam theih a ni

Qingyun Hongsheng Machinery Parts Co., Ltd. hi China rama heat-treated high hardness bimetal wear-resistant pipe siamtu leh supplier rintlak ber pawl a ni. Kan factory atanga wholesale high quality heat-treated high hardness bimetal wear-resistant pipe man tlawm takin kan lo hmuak a che u. Quotation chungchanga zawhna i neih chuan email hmangin min rawn thawn thei ang.

1. Chromium sang tak-Chromium Cast Iron / Carbon Steel (Cr > 12%) a ni.

Hei hi bimetal wear-resistant material combination hman lar ber leh man tlawm ber a ni.

• Grade pangngai (Typical Grades) te: KmTBCr15 / AISI 1010, KmTBCr20 / AISI 1020, KmTBCr26 / AISI 1020. Pawn lam base pipe chu carbon steel pangngai (eg, 1010, 1020) a ni a, a chhung lam liner chu a sang-chromium white cast iron (chromium content 15%-28%) a ni. National standard chu GB/T 34008-2017 a ni a, American ASTM A532 standard-a Class III Type A nen pawh a inmil bawk.
  • Application tling tak tak te: Medium to high impact condition hnuaia abrasive wear na tak atan a tha. A hmanna tlangpui chu:
    Mining Industry lam a ni: Slurry phurh chhuahna pipeline (a bik takin thir, rangkachak leh rangkachak laihchhuahna hmun atanga tailings leh concentrate), cyclone.
    Power Industry lam a ni: Pulverized coal phurh chhuahna pipeline, ash leh slag lakchhuahna pipeline.
    Metallurgical Industry lam atanga lo chhuak a ni: Sinter, pellet phurh chhuahna pipeline.
    Cement Industry lam a ni: Raw meal, clinker, cement powder grinding leh phurh chhuahna pipeline te.
• Rawngbawlna Nun: Slurry phurh chhuahna pangngaiah (eg, iron ore tailings, concentration 40-60%, particle size<2mm), its lifespan is typically Vawi 5 atanga vawi 15 vel a nichu chu carbon steel pipe pangngai (eg, Q235) a ni. Entirnan, steel pipe pangngai thla engemaw zat chhunga thlak ngai dinhmun bik hnuaiah chuan chutiang composite pipe chu a rei thei a niKum 2 atanga kum 5 emaw a aia rei emaw. Lifespan hi material hardness, flow velocity leh impact angle te hian nasa takin a nghawng a ni.

2. Chromium Cast Iron sang-Alloy Steel hniam-Alloy Steel (Cr > 12%, Reinforced Base Pipe) hmanga siam a ni.

Hei hi standard type atanga performance-enhanced version a ni.

• Grade pangngai (Typical Grades) te: KmTBCr26 / Q345B (16Mn) a ni a, a man pawh a to hle. Inner liner material hi chi hmasa ber (eg, Cr26) nen a inang a, mahse outer base pipe-ah chuan high-strength low-alloy steel (eg, Q345/16Mn, European S355 nena inmil) a hmang thung.
• Application tling tak tak te: Pressure sang, mechanical load, emaw thil engemaw tak nena inzawm, wear sang tak awmna dinhmun khirh takah a thavibrations a awm thin. Reinforced base pipe hian overall structural strength leh pressure-bearing capacity sang zawk a pe a ni.
  Pressure sang tak -a slurry pump chhuahna pipeline a awm, long-distance main transportation pipeline te a awm a.
  Pipeline system chak tak tak tepawn lam mechanical force emaw installation stress emaw tuar thei tur.
  Pipe pumpui rigidity sang tak leh deformation resistance mamawhna atana hman tur.
• Rawngbawlna Nun: A abrasion-resistant liner wear life hi a chi hmasa ber nen tehkhin theih a ni. Mahse, a base pipe-a fatigue leh deformation resistance a tha zawk avangin,a pumpuiah safe service cycle a rei zawk, base pipe rupture avanga a hmaa a chhiatna tur venna tha tak a ni. A thatna chu high-pressure pulsating condition hnuaiah a langsar zawk.

3. Nickel-Hard Cast Iron / Carbon Steel (Ni-Cr-Hard) hmanga siam chhuah a ni.

Hei hi abrasion-resistant white cast iron classic class dang a ni a, nickel chu primary alloying element a ni.

• Grade pangngai (Typical Grades) te: KmTBNi4Cr2 / AISI 1010. International standard ASTM A532 Class I Type A (Ni-Hard 1) emaw Type B (Ni-Hard 2) emaw nen a inmil.
• Application tling tak tak te: Medium to low impact nei condition-ah a tha a, sliding wear leh cutting wear-in a thunun ber. A khauhna a sang hle (HRC 55-62), mahse a brittleness erawh chu chromium tamna cast iron aiin a sang deuh hlek thung.
  Slurry pump flow component hrang hrang te, sand pump kawrfual a ni.
  Pipeline-a thil chi hrang hrang (eg, fly ash, quartz sand) phurh chhuahna.
  Wear-resistant applications material cost sensitive leh extreme impact force awm lo.
• Rawngbawlna Nun: Pure abrasive wear condition-ah pawh sharp quartz sand ang chi hard abrasives lakah a thawk tha hle. Mahse, a crack resistance hi high-chromium cast iron aiin a hniam zawk a, chu chu impact na tak emaw thermal shock emaw a awm chuan a ni. Lifespan hi a tlangpuiinVawi 3 atanga vawi 8 thlengsteel pipe pangngaia hman thin chu, a nghawng nasat dan a zirin.

4. Stainless Steel / Carbon Steel (Stainless Clad) hmanga siam a ni.

Hetiang pipe hian wear resistance leh corrosion resistance mamawh pahnih a huam a ni.

• Grade pangngai (Typical Grades) te: 304L / AISI 1020 a ni, 316L / AISI 1020 a ni. Pawn lam layer chu carbon steel a ni a, chakna a pe a, a chhung lam chu austenitic stainless steel a ni a, corrosion resistance a pe bawk.
• Application tling tak tak te: A remchangcorrosive wear a niemawhigh-temperature oxidative wear a nidinhmun.
  Chemical Industry lam a ni: Slurry pipeline hmanga media phurh chhuahna tur, acid, alkali, salt ang chi thil chhe thei thil awmna.
  Marine Engineering lam a ni: Tuipui tui phurh, pipeline laihchhuahna.
  High-Temperature sang tak atanga chhuak Flue Gas: Power plant flue gas desulfurization (FGD) system-a slurry pipeline-te chu a chhe thei hle.
  Ei leh in leh damdawi lam ang chi industry-a faina mamawhna hmunah chuan wear-resistant transportation.
• Rawngbawlna Nun: A dam chhung hi a bul berah chuan corrosion leh wear-in synergistic effect a neih danah a innghat a ni. Pure wear condition-ah chuan a abrasion resistance chu high-chromium cast iron nen a inmil lo thei. Mahse, corrosive wear condition hnuaiah chuan a dam chhung hian wear-resistant steel pangngai leh standard stainless steel aiin a dam rei zawk a, pitting emaw uniform corrosion avanga chhiatna rang tak a veng thei a ni. Lifespan assessment-ah hian corrosion rate leh wear rate pahnih ngaihtuah a ngai a ni.

5. Alloy bik / Carbon Steel (entir nan, High-Molybdenum, sang-Boron Alloy) .

Custom-developed materials chu extreme emaw special condition emaw atan.

• Grade pangngai (Typical Grades) te: Universal grade a awm lo, a tam zawk chu siamtute duh angin an siam. Entirnan, Cr26 base-ah Molybdenum (Mo), Vanadium (V), Boron (B) ang chi element dahin ultra-high hardness emaw phase structure bik nei alloy emaw siam a ni.
• Application tling tak tak te: Thil harsa tak tak, extreme wear, temperature sang, emaw strong impact ang chi tan pawh a tha.
  Pipeline-ah hian high-hardness ores (eg, alumina, silicon carbide) slurry phurh chhuah a ni.
  Pneumatic conveying pipelines for high-temperature solid particles (>400℃a ni ).
  Boiler "tube pali" (tui bang, superheater, etc.) chhe nasa tak leh chhe tawhte tan venhimna kawr hak tur a ni.
• Rawngbawlna Nun: Extreme condition bik hnuaiah chuan a dam chhung hi a tipung thei a ni30% atanga 100% thleng a ni.cast iron material pangngai, high-chromium sang tak nena khaikhin chuan. Mahse, a man a to avangin hmun pawimawh, hmun hlauhawm takah chauh hman a ni tlangpui. A cost-effectiveness chu downtime leh replacement frequency tihtlem ah a awm a ni.

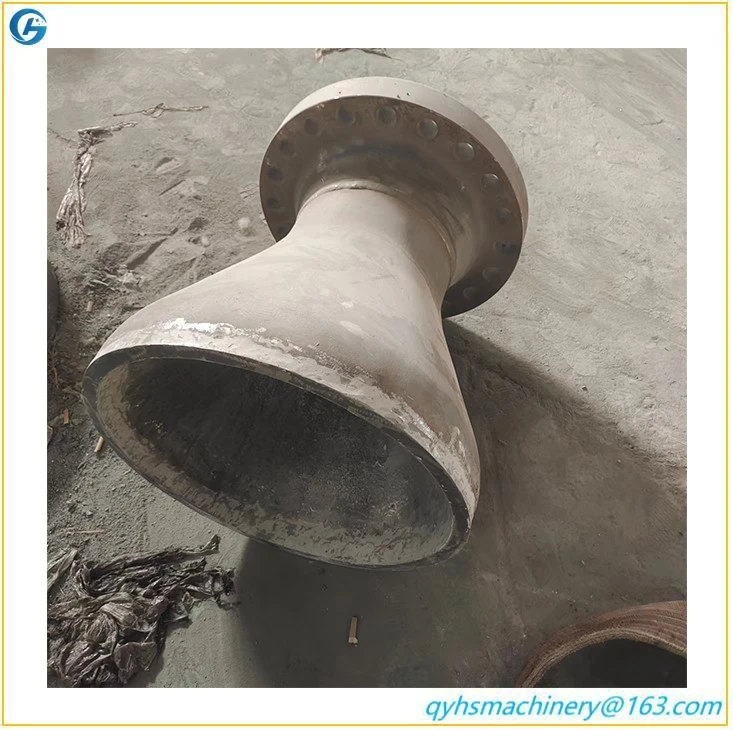

  Product Thlalak te







  Company Profile chungchang



  dshow hmanrua co.,ltd



  Dezhou, Shandong-a Bohai Economic Development Zone-a hmun pawimawh takah awmin, Qingyun Hongsheng Machinery Parts Co., Ltd. hian logistics danglam tak aṭangin hlawkna a hmu a ni. Bin-De Expressway atanga km 5 chauh a hlaah leh Tianjin Port atanga km 80 vel a hlaah awmin, khawvel pum huapa kan thawhpui te tan supply chain connectivity tha leh rintlak tak kan enkawl a ni.

  R&D, precision processing, production, leh international trade te inzawmkhawmna integrated manufacturer kan ni. Specialized large-scale producer kan nih angin, extreme industrial environment-a high-performance solutions kan ngaihtuah a, chung zingah chuan:

  • Ceramics leh composite linings do thei lo-bun rawh
  • Heat-resistant leh stainless steel casting te a awm bawk
  • Composite corrosion-resistant alloy steel te chu a chhuak thei lo

  Kan component te hi mining, cement, power generation, leh metallurgy ang chi sector mamawh tak takah te pawh a chhe thei lo tura engineer a ni. Quality leh innovation lama inpekna neiin, khawvel puma client-te tan downtime tihtlem, maintenance cost tihhniam, leh equipment service life ti rei thei tur thil rintlak tak tak kan pe chhuak thin. Industrial material solution pawimawh tak tak siamna atana i thawhpui rintlak tak kan ni.



  Zawhna Zawh fo thin







  Engtin nge ka hnathawh dan bik atan hian material leh grade tling ber ka thlan theih ang?



  -

  Hei hi key parameter engemaw zatah a innghat a, chungte chu abrasives chi hrang hrang, hardness, particle size, slurry concentration, flow velocity, pH level, temperature, leh impact angle te an ni. Operational consultation leh selection service a thlawna kan pe thin. A chunga parameters te hi pe la, kan engineer te chuan i tan solution man tlawm ber-effective ber an rawn rawt ang che.

  Custom size i pe em? I standard size range chu engzat nge ni?



  -

  Ni e, customization hi kan service bulpui ber pakhat a ni. Pipe diameter Φ10mm atanga Φ1000mm aia tam leh i mamawh ang zela sei zawng kan siam thei. Pipe dinglam emaw, elbow emaw, tee emaw, reducer emaw, special-shaped part emaw pawh ni se, kan pe thei a ni.

  Order zat tlem ber (MOQ) chu engzat nge ni?



  -

  Trial order leh project tenau te thlawp turin kan MOQ hi a flexible hle. Standard specification atan chuan ton 1-2 vel a hniam thei. Custom parts tan chuan meter emaw weight emaw a mamawh tlem ber chu complexity ah a innghat. I mamawh bikte nen min rawn biak theih reng e.

  Lead time pangngai chu eng nge ni?



  -

  Conventional material leh specification tan chuan standard lead time chu contract hman tan atanga ni 25-35 a ni. Custom part buaithlak tak tak emaw, order lian tham emaw siam nan hun pek belh a ngai thei bawk. I order kan confirm hmain production schedule dik tak kan pe ang.

  Engtin nge a man hi chhut a nih? Eng thilte nge nghawng nei lian ber?



  -

  A man hi meter khat emaw ton khatah emaw chhut a ni tlangpui a, a hnuaia thilte hian a nghawng ber a ni:

  1. Liner material grade (entir nan, Cr15, Cr26, stainless steel) te chu a awm a;
  2. Pipe dimension (diameter, bang thickness, a sei zawng);
  3. Base pipe hmanrua te;
  4. Customization-a thil harsa tak (eg, elbows);
  5. Order zat tur.

  I zawhna a\\angin quotation kimchang tak kan pe ang.
